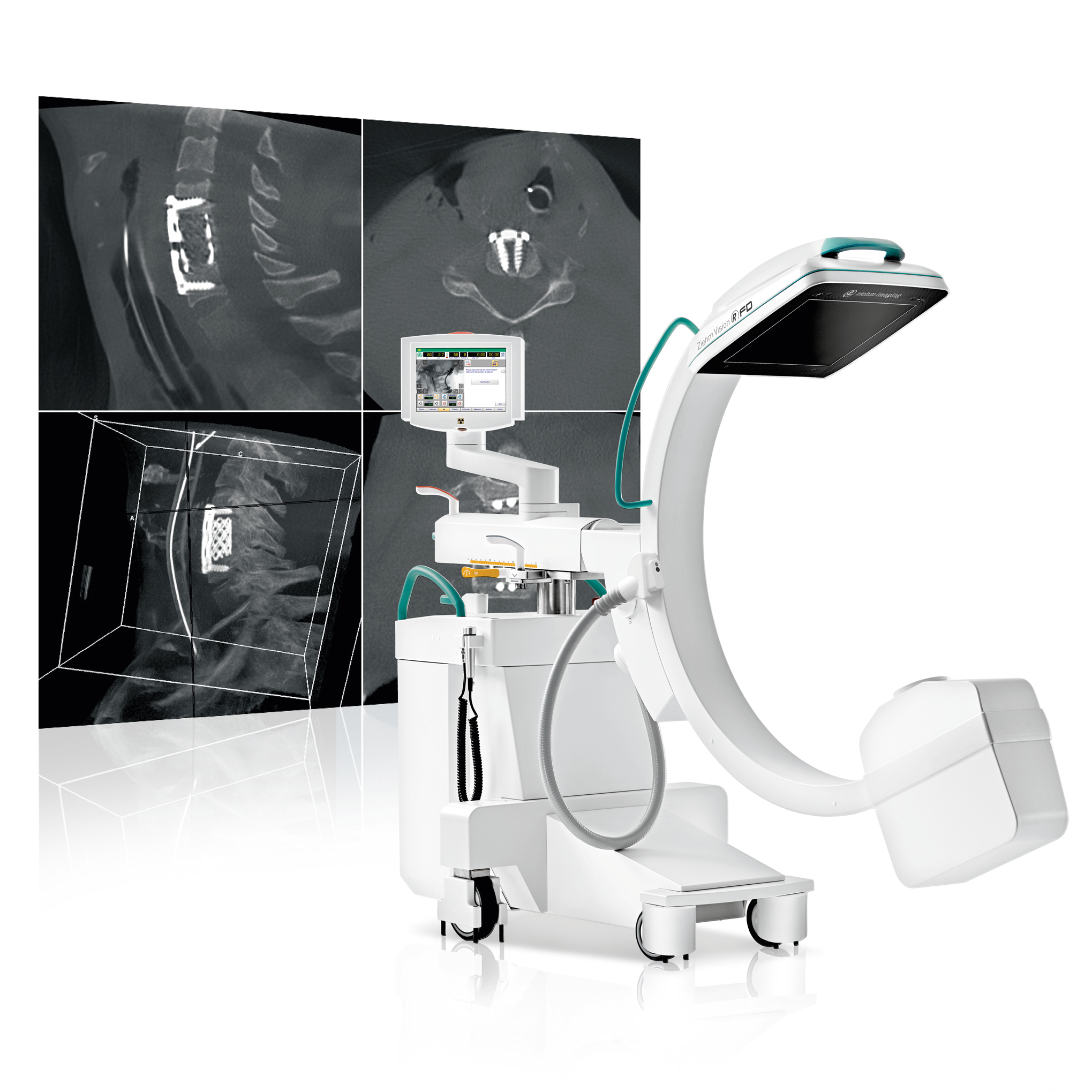

Ziehm Vision RFD 3D
Save your facility up to $250,000.00
The Revolution in 3D Imaging
Ready to Ship AND Tariff Free
- Seamless Navigation Integration: Compatible with Brainlab, Stryker, Globus, and Mazor navigation units for advanced surgical workflows.
- Professional Installation & Training: Every system includes installation by a certified Ziehm Factory Engineer and comprehensive applications training.
- Superior Heat Management: The 25 kW liquid-cooled generator delivers best in industry temperature management.Twice the heat capacity of the closest competitor!
- Competitive Advantage: Outperforms comparable systems such as Siemens Cios Spin and GE OEC CFD Elite 3D — reach out for detailed comparisons.
What Sets these Systems Apart
Technologically leading 3D imaging with CT-like image quality
- Latest CMOS flat-panel technology for CT-like image quality
- Significantly more distinguishable anatomy in 3D reconstruction with ZIR (Ziehm Iterative Reconstruction) to minimize metal artifacts.
- Different volume sizes for the ideal resolution with 320³ voxel or 512³ voxel (in the CMOSline1,2 equipment variant)

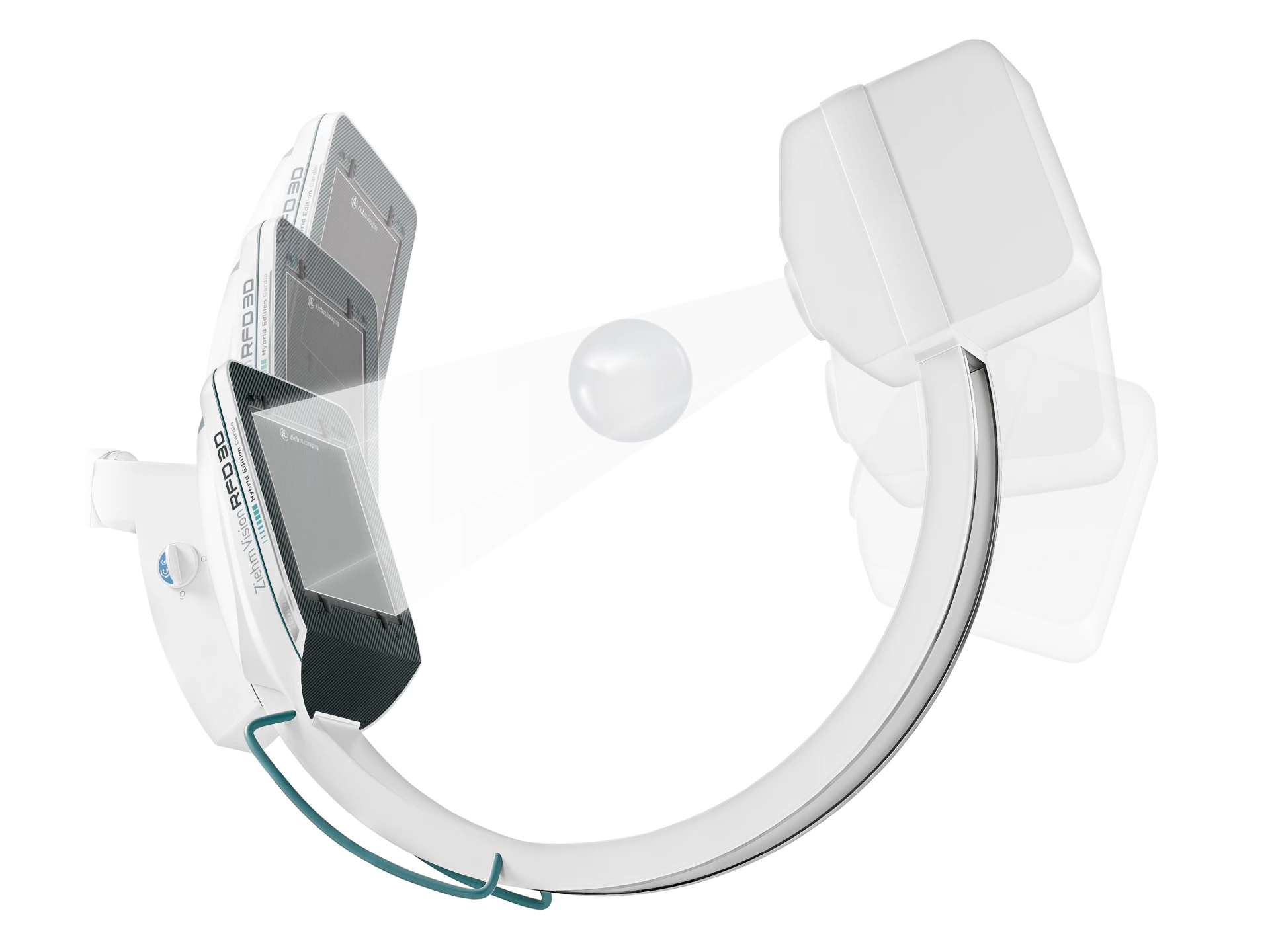

- Patented SmartScan technology for complete 3D information
Extend your imaging capabilities for 2D, 3D and multidisciplinary use
- Pulsed monoblock generator with 30 kW3 power performance
- Advanced Active Cooling to keep the generator at an optimum operating temperature
- Excellent 2D imaging with leading 3D technology delivering high-end multidisciplinary capabilities in a space saving design
Ziehm Vision RFD 3D – Key Features & Benefits
| Feature | Benefit |
|---|---|
| CMOS Detector + Ziehm Iterative Reconstruction (ZIR) | Provides CT-like clarity with reduced metal artifacts for precise intraoperative imaging. |
| SmartScan 3D | Enables a complete 3D scan in one pass for faster decision-making during surgery. |
| Variable Volume Sizes | Flexible 3D volumes: 16×16×16 cm standard, optional 10×10×10 cm or ~20×20×18 cm for broader applications. |
| 25 kW Generator + Advanced Cooling | Delivers reliable power and thermal stability even during long or complex procedures. |
| Position Control Center (PCC) + Remote Vision Center (RVC) | Intuitive touchscreen and motorized axis control, with navigation/robotics integration through Open NaviPort. |
| SmartDose Technology | Optimizes image quality with lower X-ray exposure, includes pediatric dose reduction and anatomy-based adjustment. |
| Comprehensive Documentation | Supported by brochures, case studies, and whitepapers to guide purchasing and clinical use. |
The Ziehm Vision RFD 3D combines CMOS detector technology with Ziehm Iterative Reconstruction (ZIR) for CT-like clarity.
This reduces metal artifacts and gives surgeons improved intraoperative control compared to traditional 2D C-arms.
- Standard 3D volume: 16 × 16 × 16 cm
- Optional volumes: 10 × 10 × 10 cm or ~20 × 20 × 18 cm (320³ / 512³ voxels)
- Flat-panel options:
- 31 × 31 cm CMOS detector (3k × 3k resolution)
- 30 × 30 cm a-Si detector (1.5k × 1.5k resolution)
A powerful 30 kW³ pulsed monoblock generator ensures consistent performance.
The system is supported by Advanced Active Cooling, which allows reliable operation even during long or complex procedures.

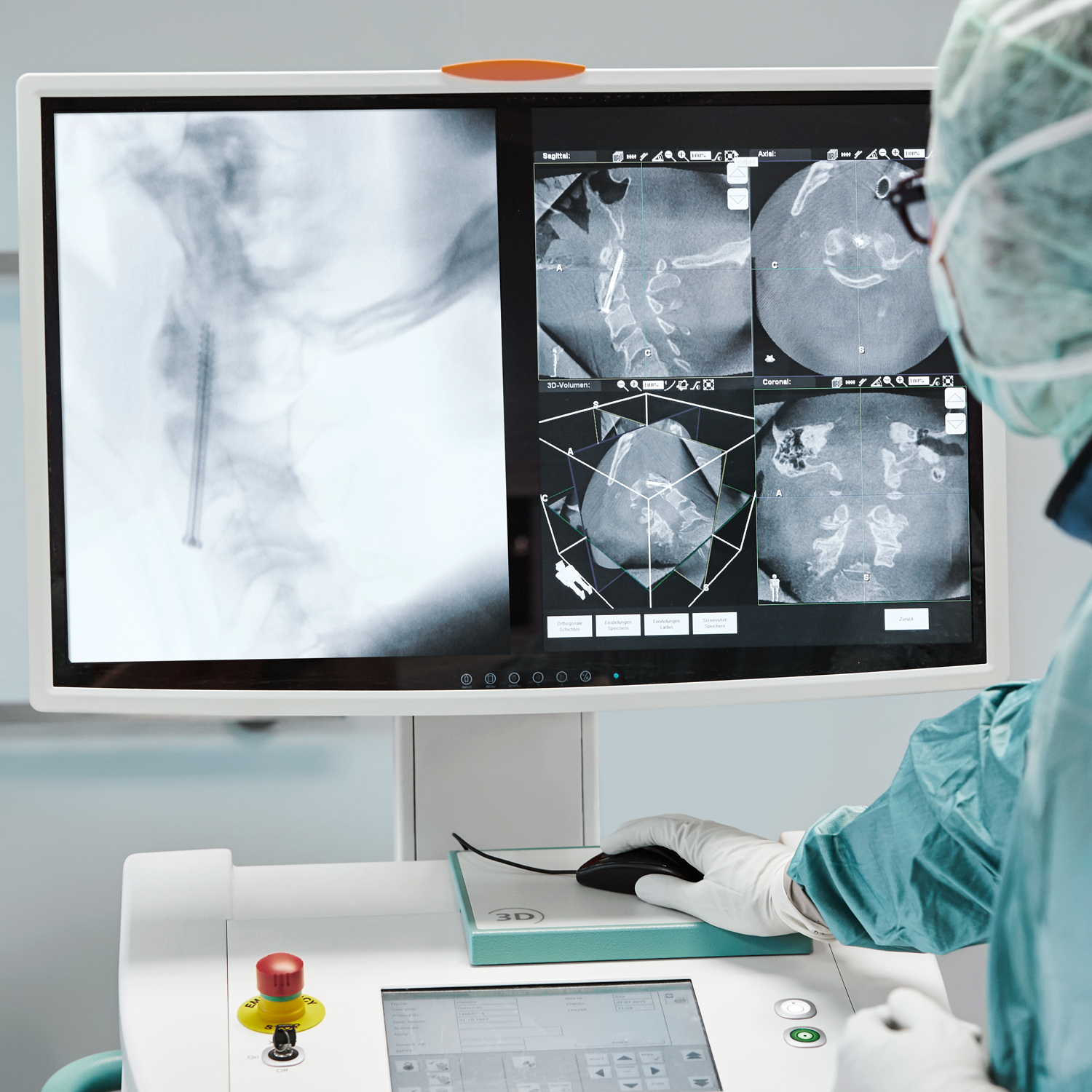

The Ziehm Vision RFD 3D features motorized axes controlled via the Position Control Center (PCC)
and Remote Vision Center (RVC) touchscreens.
The Open NaviPort interface allows integration with image-guided navigation and robotic systems.
All functions are unified under the Ziehm Usability Concept for streamlined workflows.
- SmartDose technology balances image quality with lower radiation dose
- Automatic anatomy-based dose adjustments
- Pediatric dose reduction protocols
- Integrated beam filtration for additional safety
Ziehm offers a wide range of documentation and support materials, including:
- The Revolution in 3D Imaging – Product Brochure
- Web-optimized Vision RFD 3D Brochure (PDF)
- Official Vision RFD 3D Product Page, with additional brochures, case reports, and whitepapers
- U.S. Support & Contact Form for customer service, technical support, upgrades, and training
